Dimensional measurements
by 3D laser scanning
THREE-DIMENSIONAL MEASUREMENTS
BY 3D LASER SCANNING
Phases and deliverables
  • On-site survey
  • Data processing
  • Deliverable in 3 modes : 3D dots cloud, 3D model modeling and 3D video / photos
  • Visualization and use of data
SCANNER FARO Focus S 150 Precision
Versatile, long-range, high-precision scanner
  • Type: Laser Scanner Class 1
  • Scan Speed: High Speed, 976,000 pts / sec
  • Range: Up to 150m
  • Fields of acquisition: 300 ° x 360 °
  • Precision: +/- 1mm
  • Optional levelling system: biaxial compensation
  • Applications: Long-range, High density
  • Operating temperature -20 ° to + 55 °
  • Photo resolution: 165 megapixels
Processing softwares
  • Real Works
  • Scene
  • Cyclone modeller
  • Autocad
  • Bricscad

on-site surveys : offshore platform, buildings,...

Benefits
  • Unnecessary scaffolding
  • No contact with facilities
  • Reduced on-site survey time
  • Limited number of people
  • Comprehensive surveys
  • Provision of a publisher (Panoramic photo to take quotes)
Our added value :
in addition to performing all the 3D services, our design office carries out all the calculation notes, studies and supports you throughout your projects (APS, APD, EXE...).





Very short deadlines for the production of 3D models of your installations, for example the time required for this 3D model: survey on site (2 days), production of the 3D model (1 month)

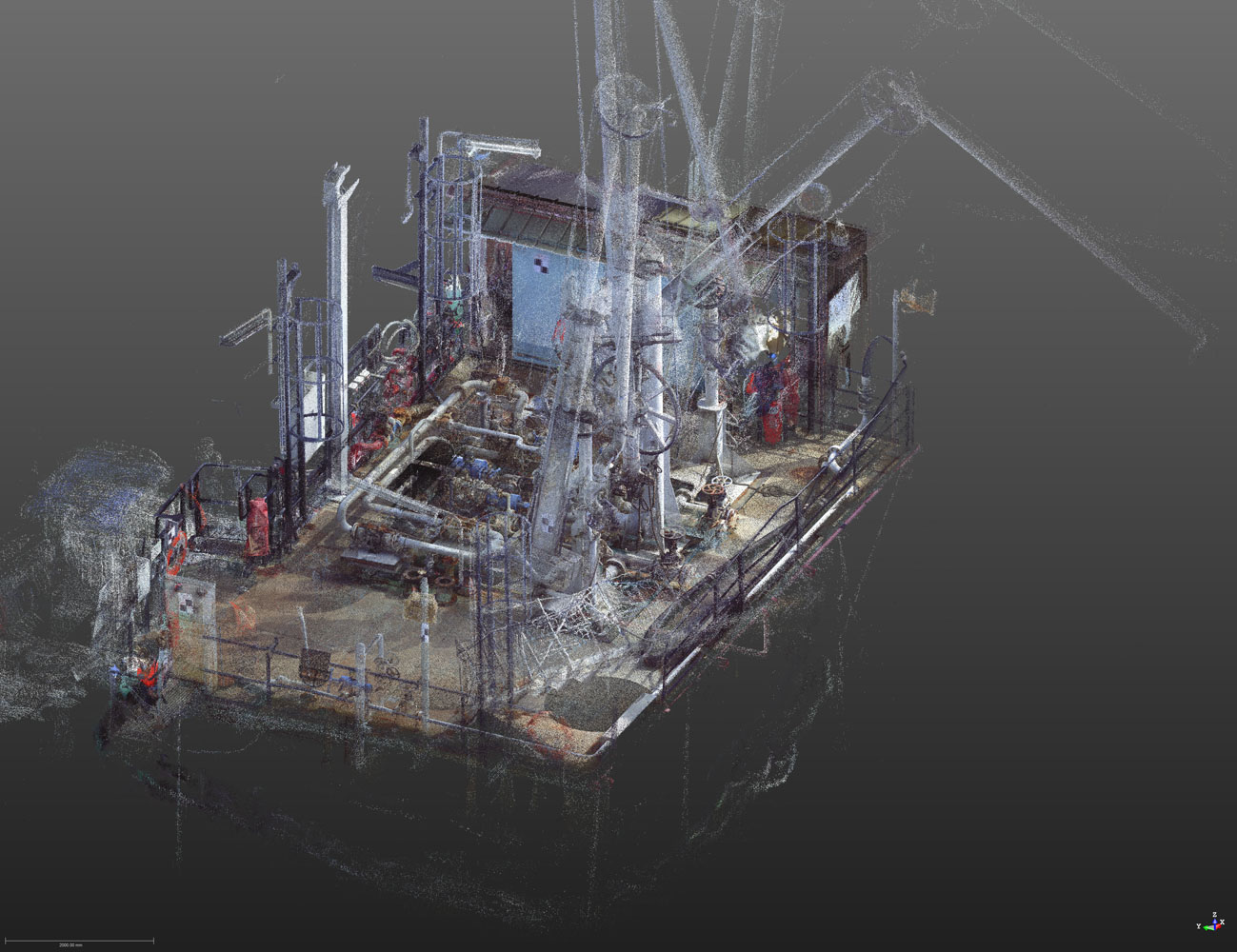

3D dots cloud
3D dots cloud
3D model
3D model

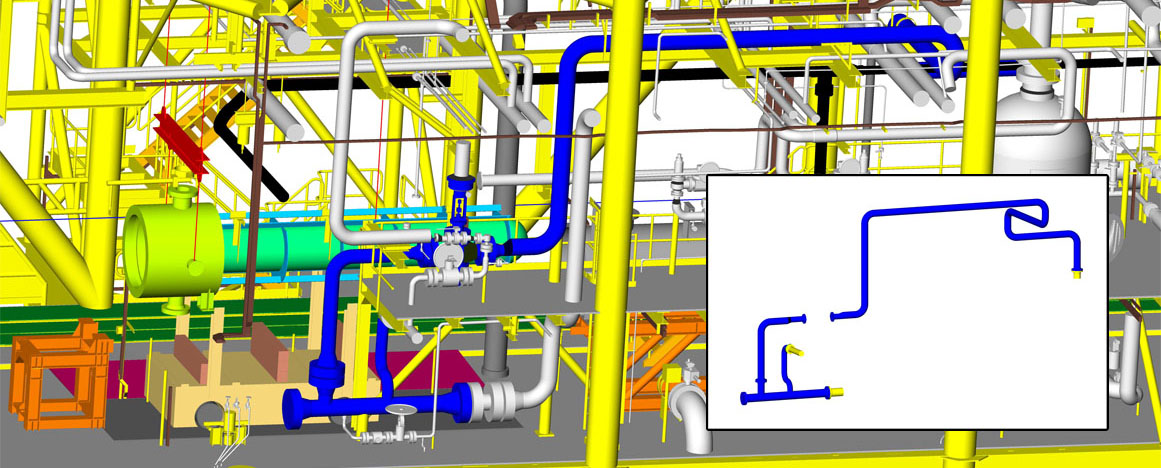

Isolation of a pipe line
Isolation of a pipe line
3D dots cloud
3D dots cloud
3D model
3D model
Martinique jetty

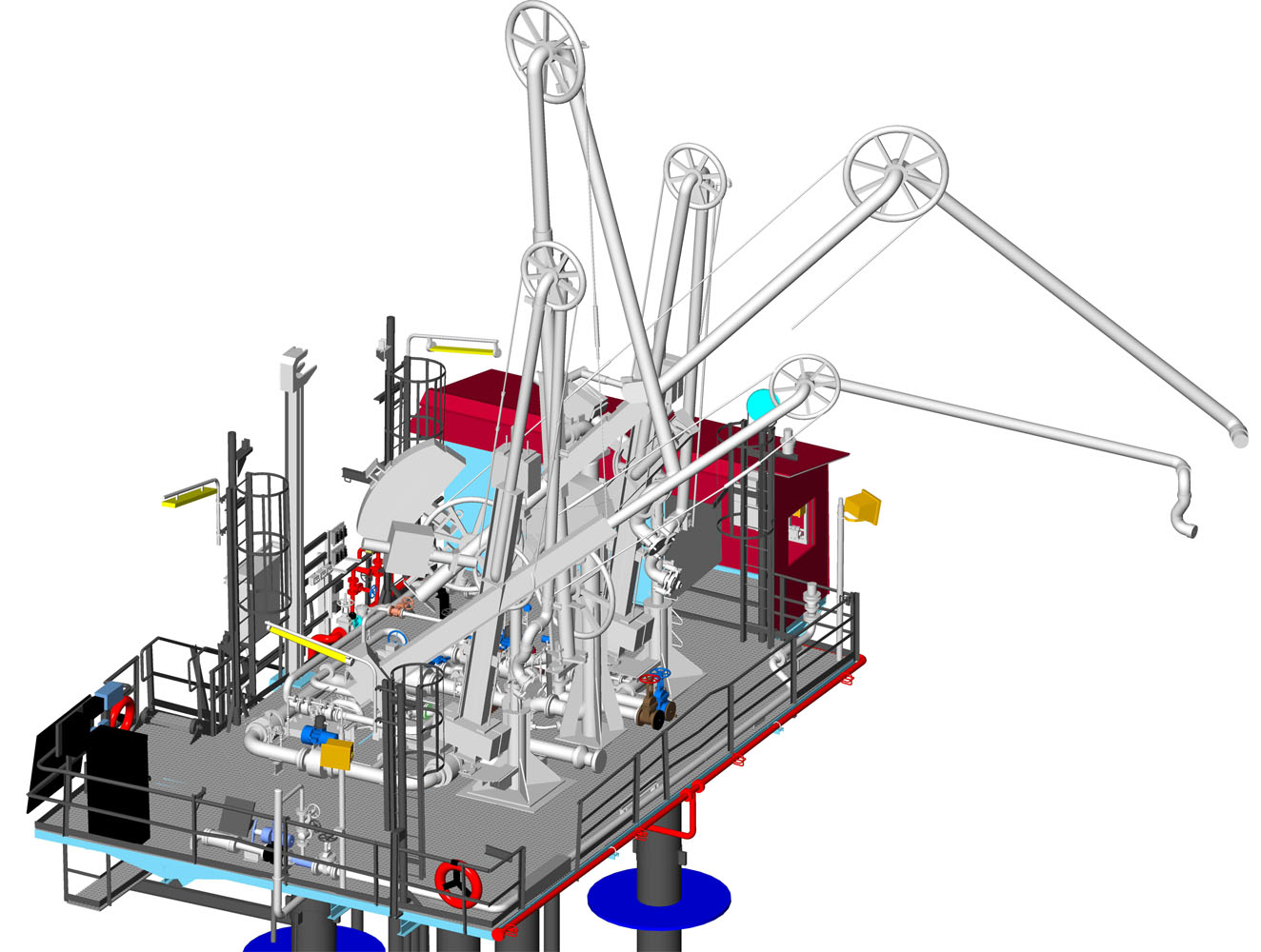

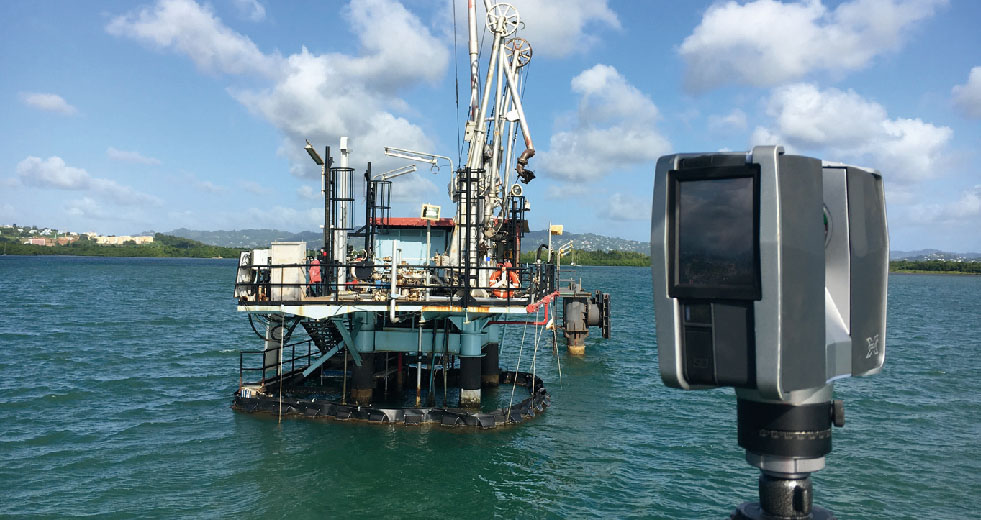

Martinique jetty, 3D video / photos

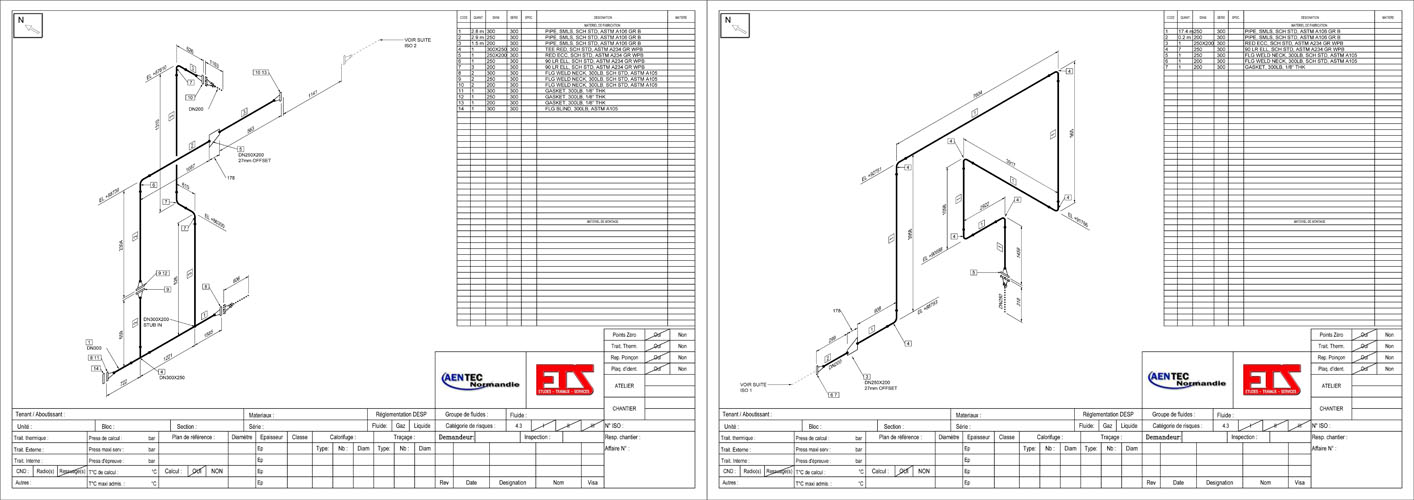

Realization of isometrics from the 3D model
Realization of isometrics from the 3D model

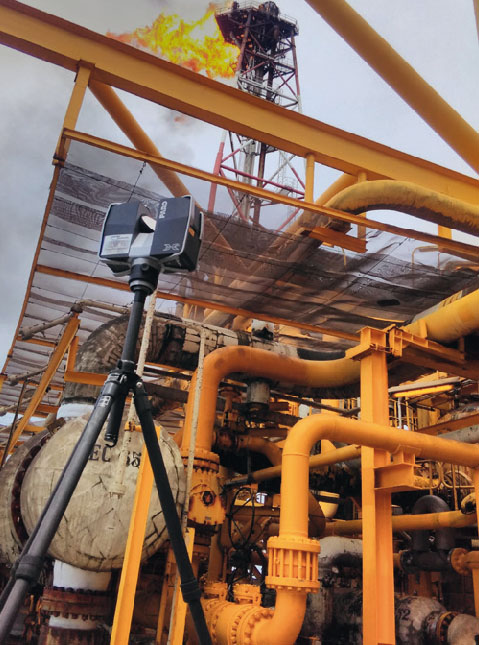

Oil rig scan
Oil rig scan
Example of studies carried out
Study n°1

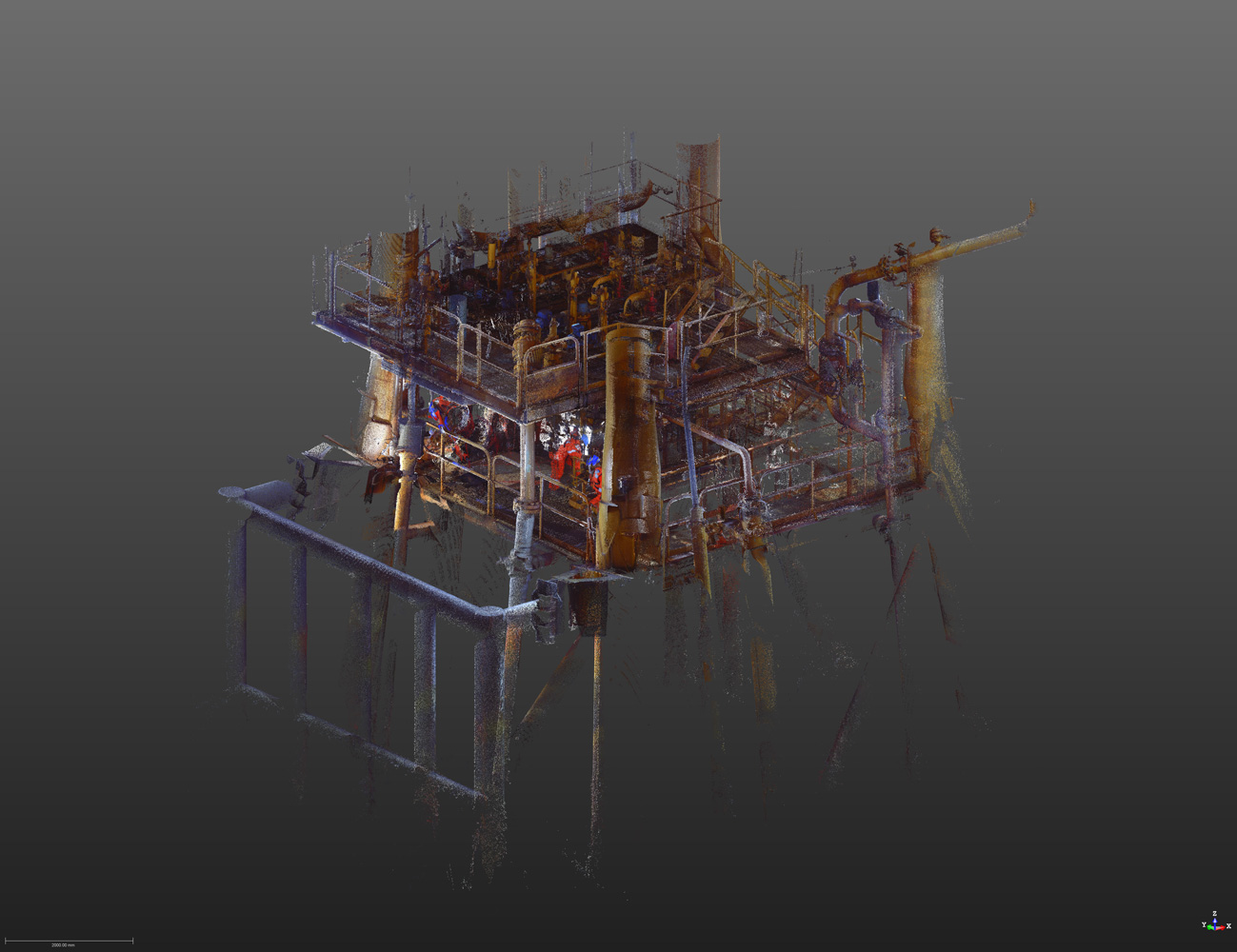

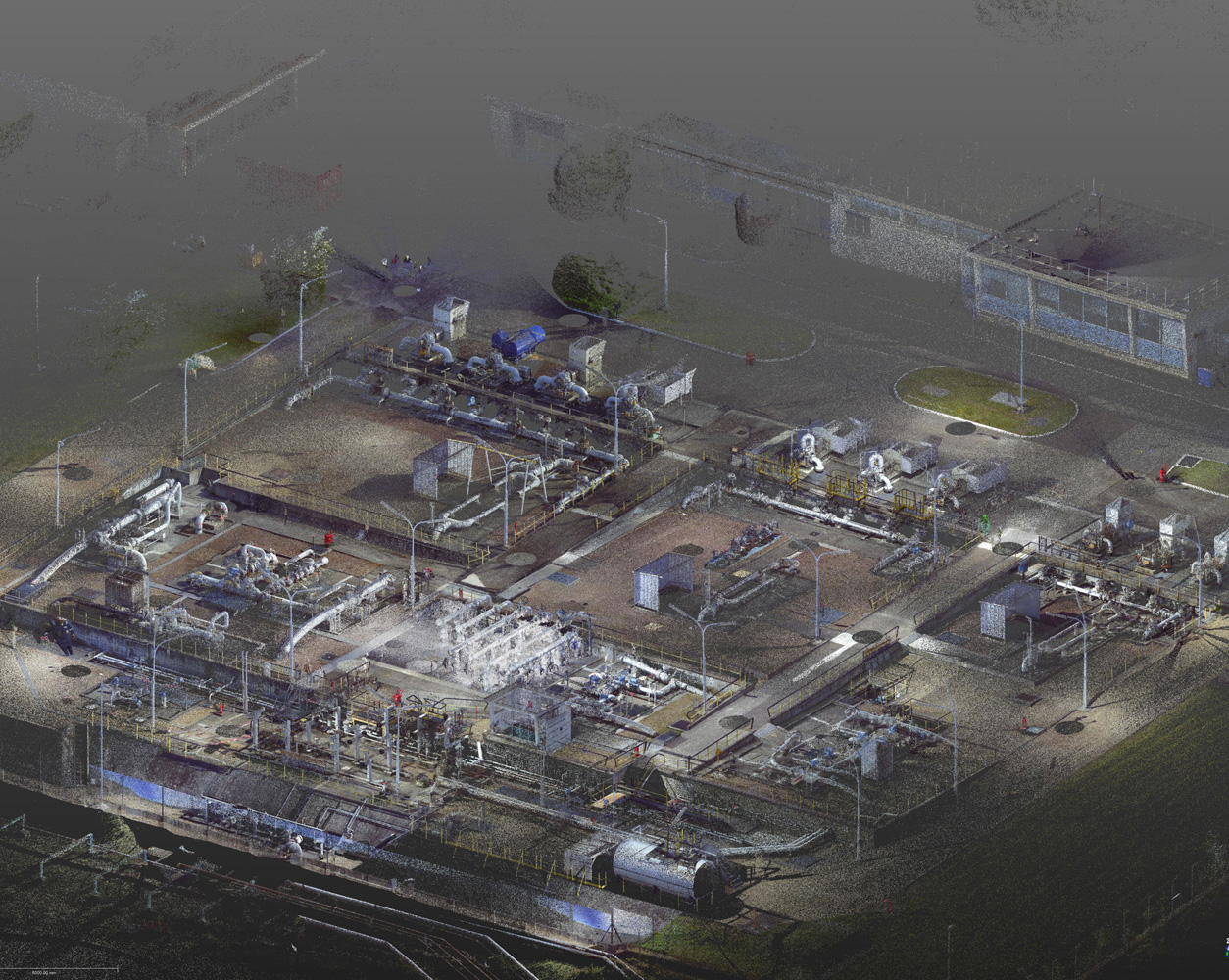

3D dots cloud real view 3D dots cloud real view

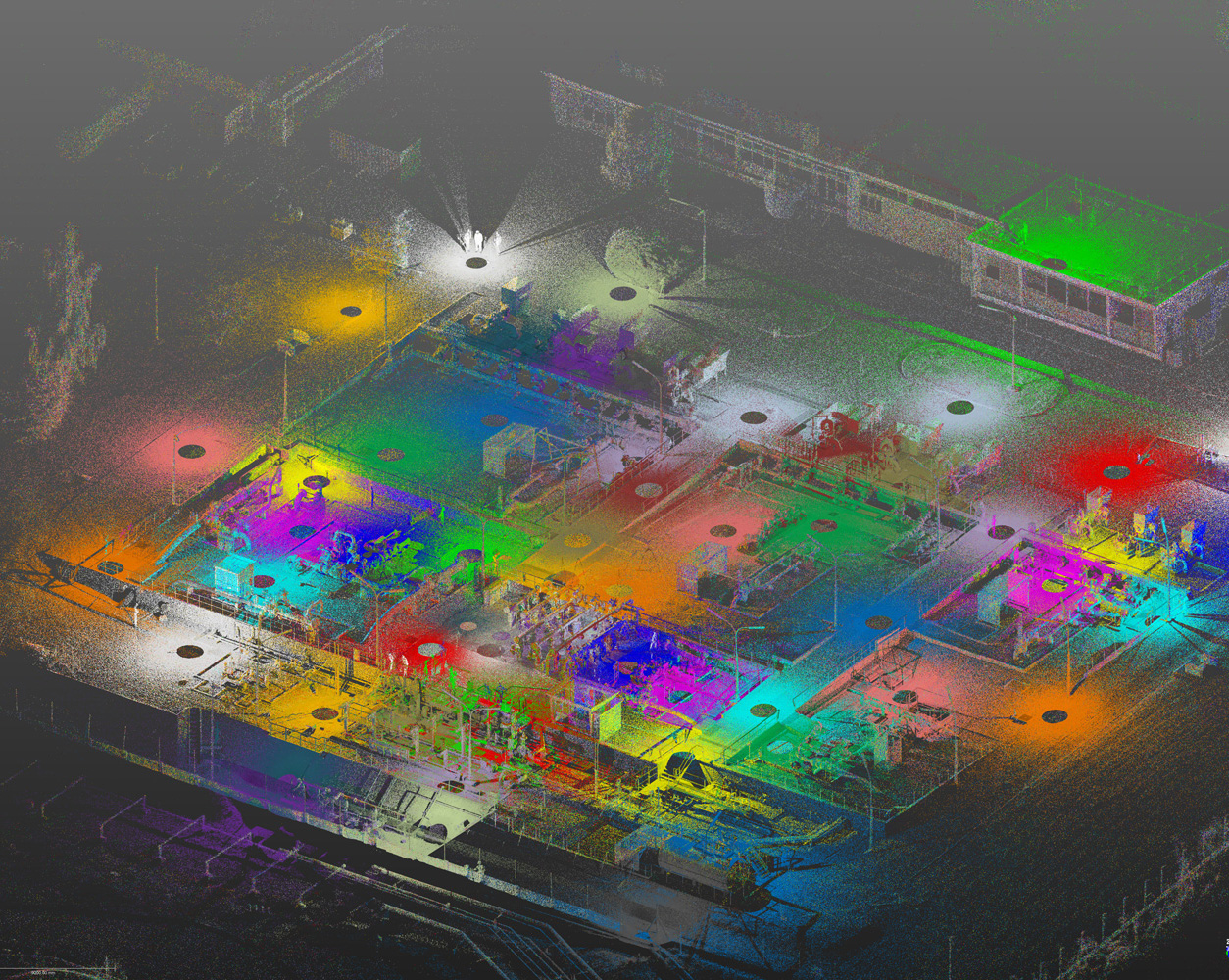

3D dots cloud by color scan position 3D dots cloud by color scan position

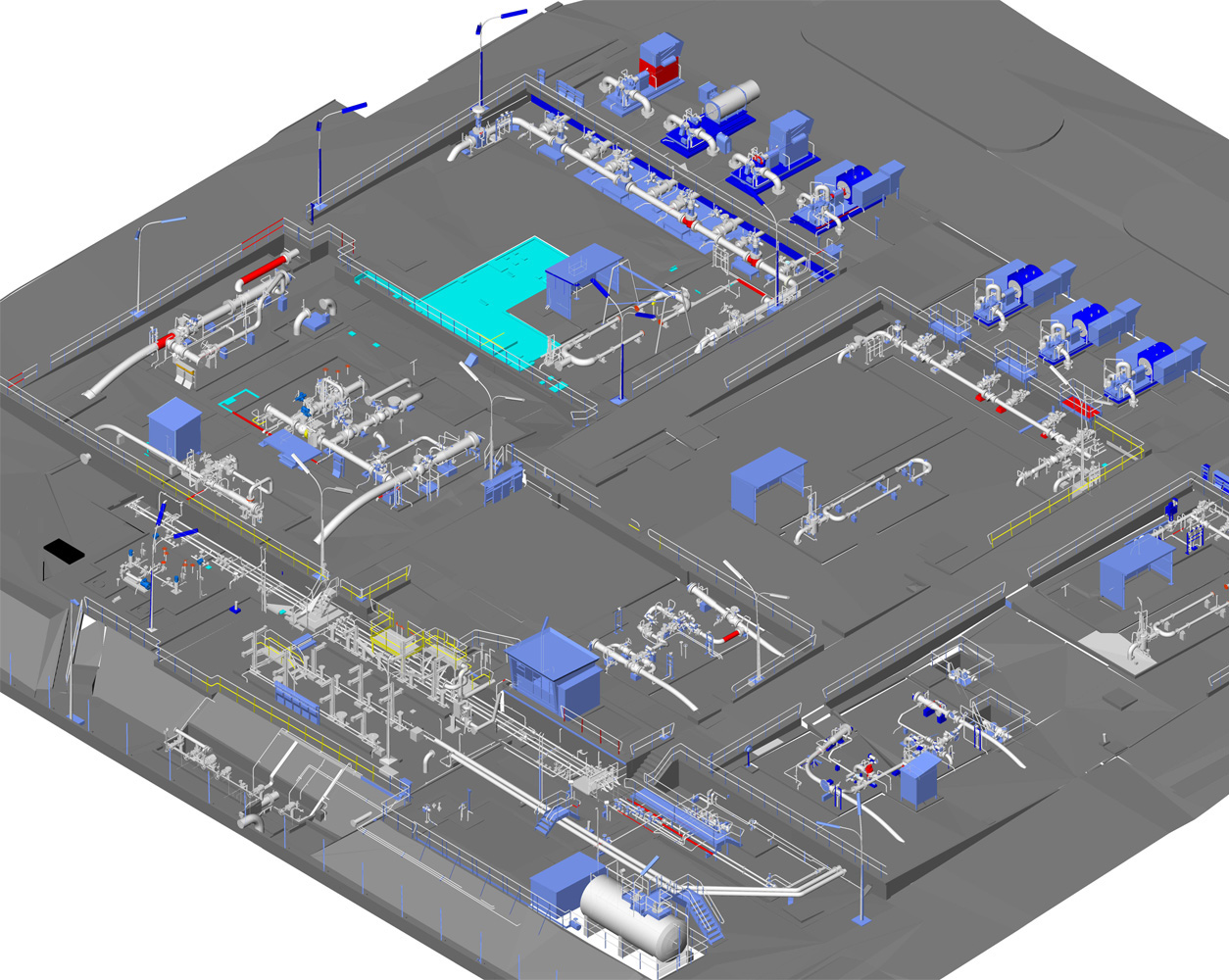

3D model of the existing 3D model of the existing

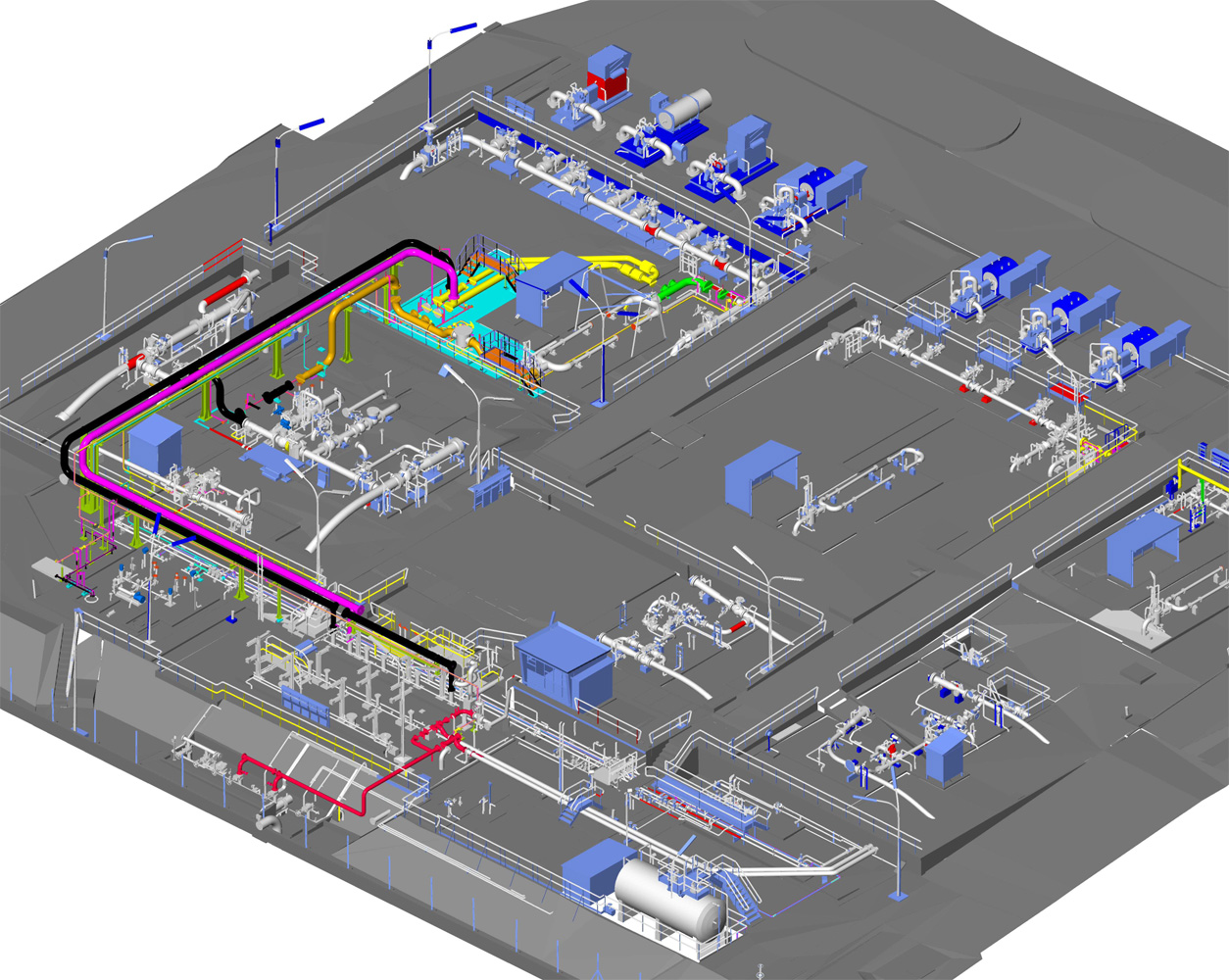

3D model after study 3D model after study (addition of piping)

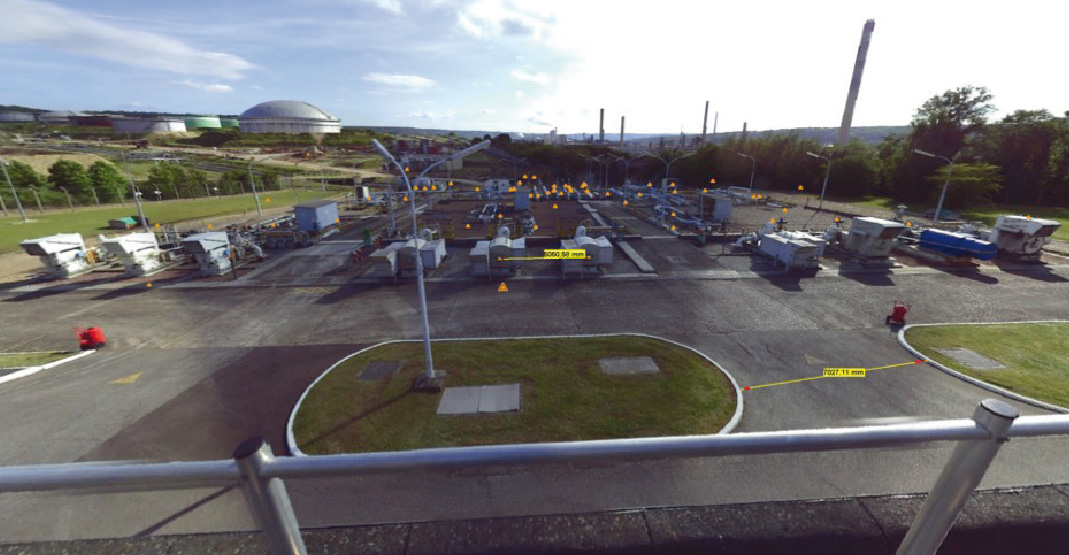

Taking dimensions from the Publisher Taking dimensions from the Publisher
Study n°2
Congo offshore oil field Congo offshore oil field

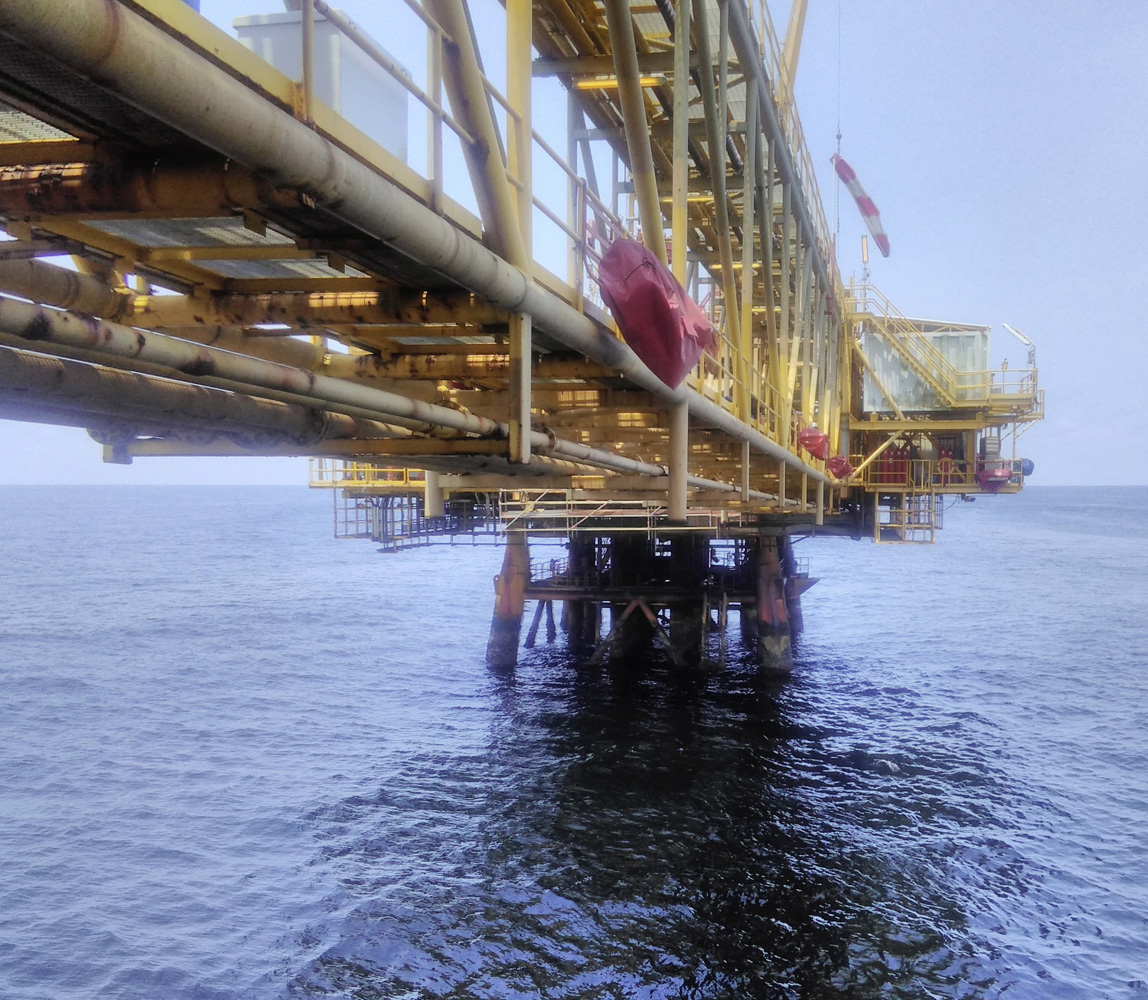

Scan On-site surveys

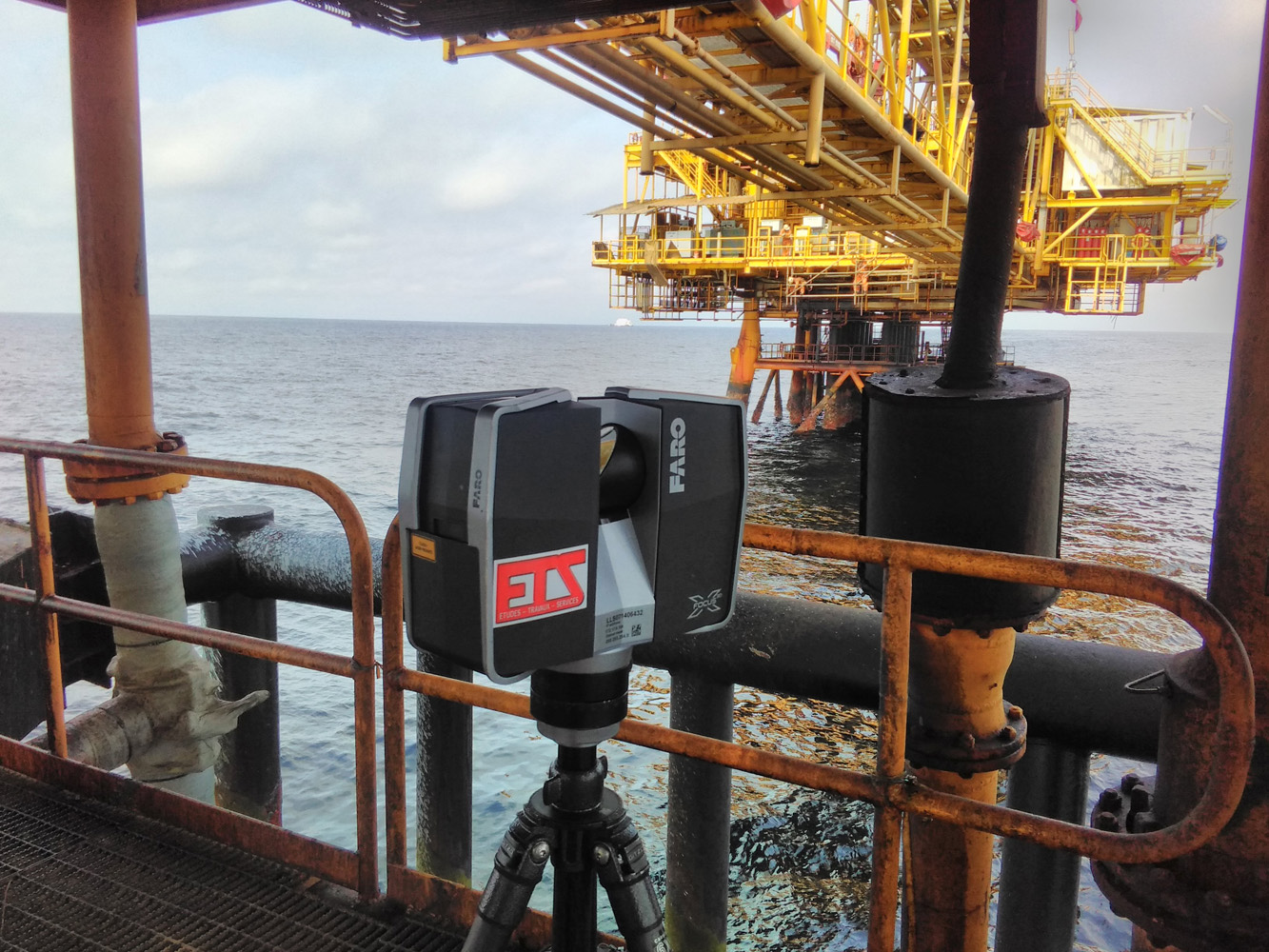

Scan Dimensional surveys

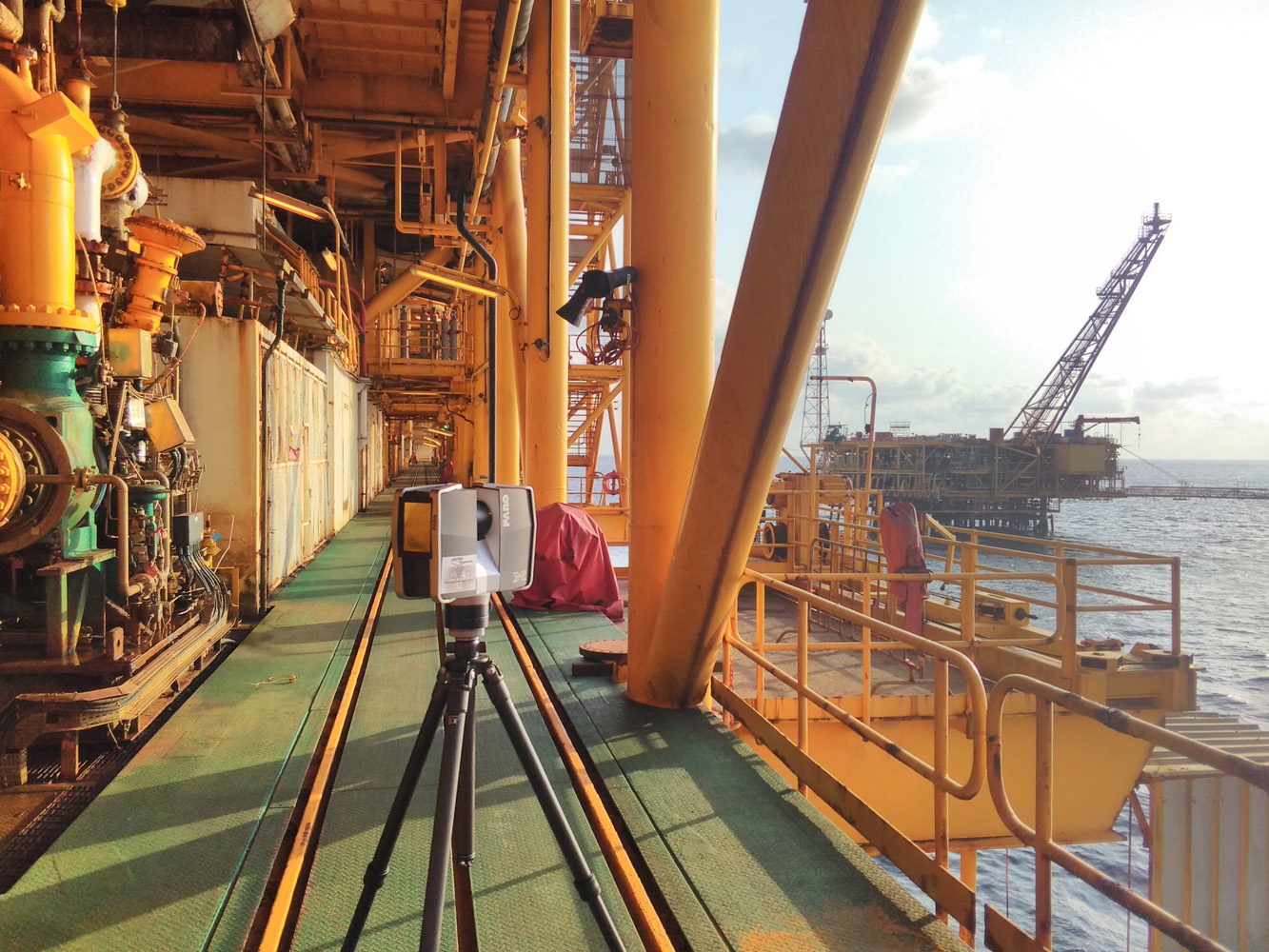

Scan Scan

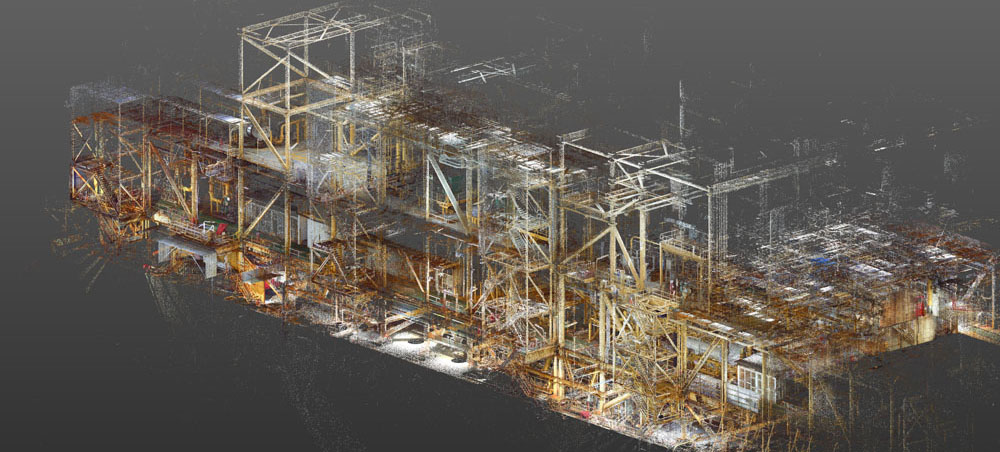

3D dots cloud 3D dots cloud

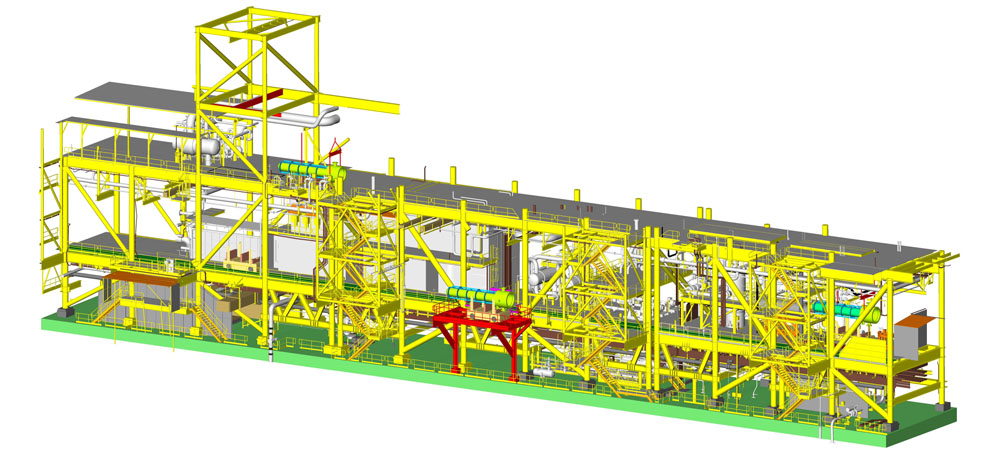

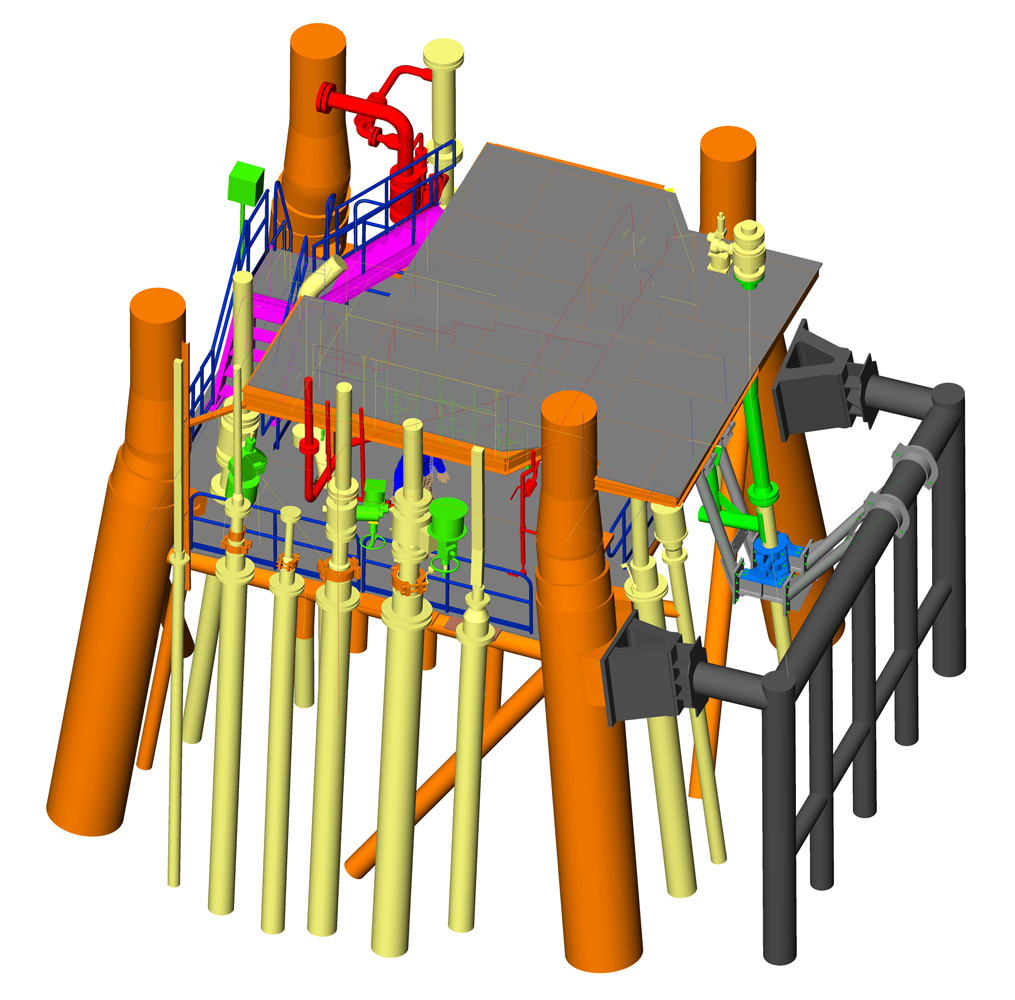

3D model 3D model
(modeling of risers to replace)
puce OUR FIELD OF EXPERTISE
  • Petrochemistry
  • Refining
  • Offshore
  • Agri-Food
  • Pharmacy
  • Building
  • Engineering structure
  • BIM
  • Heritage conservation
  • Ship repair
  • Crime scene and accident
puce OUR STRENGTHS
  • Realization of fast, accurate and
  • true to reality measurements
  • National and international mobility
  • Reactivity
  • Competitiveness
  • The quality of the work provided
  • Serious
  • Already more than 10 years of experience in the integration of the 3D laser scan dimensional measurements in our studies
  • Digitization in challenging environments
puce INTERNATIONAL WORK ONSHORE AND OFFSHORE
  • Martinica
  • Congo
  • Gabon
  • Morocco
  • Australia
  • England
  • United Arab Emirates
  • India
carte pole

9 areas of expertise

1Relevés dimensionnels par scan 3D
Measurements by 3D laser scanning
2Installation générale
General installation
3Calculs
Calculation
4Tuyauterie industrielle
Industrial piping
5Charpente métallique
Steel structure
6Chaudronnerie
Boiler-making
7Relevés dimentionnels de bacs de stockags
Storage tanks measurements
8PMII
PMII
9Machines tournantes
Rotating machines
